Burgmann MF95N Metal bellow seal

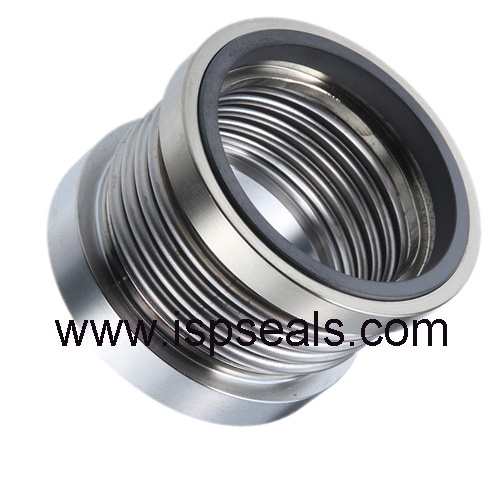

BURGMANN MF95N Metal bellow mechanical seal

1,Operating range
Shaft diameter: d1 = 14 ... 100 mm (0.55“ ... 3.94“)
Temperature: t = -40 °C ...+220 °C (-40 °F ... +428 °F)
Pressure: p = 16 bar (232 PSI)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement: ± 0.5 mm

2,Materials
Bellows: Hastelloy® C-276 (M5)
Seal face: Silicon carbide (Q12), Carbon graphite resin impregnated (B), Carbon graphite antimony impregnated (A)
Seat: Silicon carbide (Q1)
Metal parts: CrNiMo steel (G1)

3,Features
For unstepped shafts
Rotating bellows
Single Seal
Balanced
Independent of direction of rotation
Roller bellows

4,Advantages
For extreme temperature ranges
No dynamically loaded O-Ring
Very good self cleaning effect
Suitable for low-end sterile applications

5,Recommended applications
Water and waste water technology
Refining technology
Power plant technology
Chemical industry
Pharmaceutical industry
Food and beverage industry
Hot media
Cold media
Highly viscous media
Pumps
Special rotating equipment

6,SIZE:  FROM 14MM TO 100 MM

7,PACKING: IN CARTON

8,DELIVERY TIME: ABOUT 10 DAYS OR DEPENDS ON THE QUANTITY

9,PAYMENT: T/T OR WESTERN UNION

10,MOQ:5 SET PER ITEM

WELCOME TO INQUIRE US FOR THE DETAILED INOFRMATION OF THE TYPE SEAL
