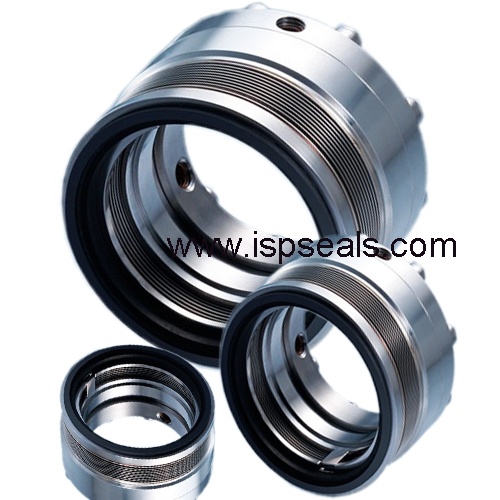

BURGMANN MFLWT Metal bellow mechanical seal

BURGMANN MFLWT Metal bellow mechanical seal
Product name : BURGMANN MFLWT Metal bellow mechanical seal
Item : ISP BMFLWT
Details :

BURGMANN MFLWT80 Metal bellow mechanical seal

ISP BMFLWT80 IS THE SAME AS ORIGINAL BURGMANN MFLWT80 METAL BELLOW TYPE SEAL.

1,Features
For unstepped shafts
Single seal
Balanced
Independent of direction of rotation
Metal bellows rotating

2,Advantages
For extreme temperature ranges
No dynamically loaded O-Ring
Self cleaning effect
Short installation length possible
Pumping screw for highly viscous media available (dependent on direction of rotation).

3,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -20 ℃ to +200 ℃
       PRESSURE: ≦ 2.1MPa
              SPEED: ≦23M/S
4,MATERIAL:
              STATIONARY RING: CAR/ SIC/ TC
                       ROTARY RING: CAR/ SIC/ TC
                SECONDARY SEAL:  GRAQHITE
SPRING AND METAL PARTS: SS/ H-C
                                    BELLOW: AM350

5,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

6,SIZE:  FROM16MM TO 100 MM

7,PACKING: IN CARTON

8,DELIVERY TIME: ABOUT 10 DAYS OR DEPENDS ON THE QUANTITY

9,PAYMENT: T/T OR WESTERN UNION

10,MOQ:5 SET PER ITEM

WELCOME TO INQUIRE US FOR THE DETAILED INOFRMATION OF THE TYPE SEAL
