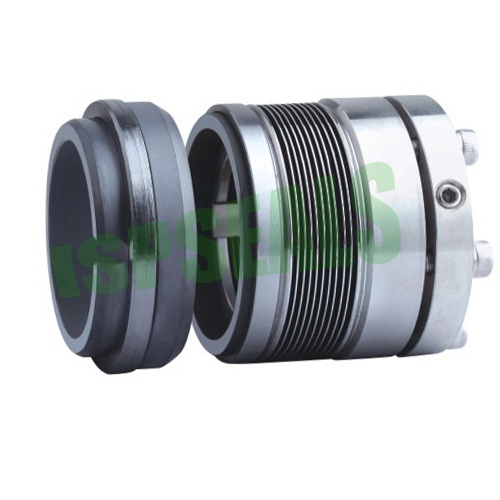

Johncrane 609 Metal bellow seal

ISP C609 IS THE SAME AS ORIGINAL JOHNCRANE 609 METAL BELLOW TYPE SEAL.



1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -75 ℃ to +400 ℃
       PRESSURE: ≦ 2.0MPa
              SPEED: ≦23M/S

2,MATERIAL:
              STATIONARY RING: CAR/ SIC/ TC
                       ROTARY RING: CAR/ SIC/ TC
                SECONDARY SEAL:  GRAQHITE
SPRING AND METAL PARTS: SS/ H-C
                                    BELLOW: AM350

3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

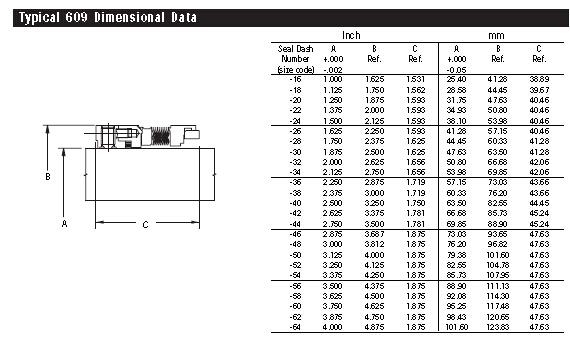

4,SIZE:  FROM 0.75 INCH TO 4.0 INCH

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 10 DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:5 SET PER ITEM

WELCOME TO INQUIRE US FOR THE DETAILED INOFRMATION OF THE TYPE SEAL
