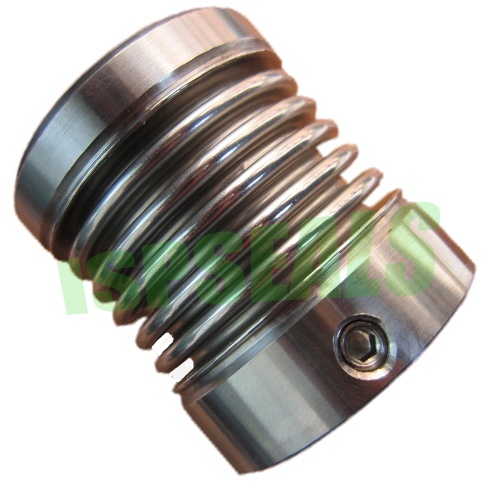

JC 515E Metal bellow seal

ISP 515E IS THE SAME AS ORIGINAL JOHNCRAVE T515E METAL BELLOW TYPE SEAL.

1,Temperatures: -40°C to +200°C/
                               -40°F to +390°F    depending onmaterials used
          Pressures: Up to 20 bar g/290 psig
               Speeds: Up to 25 m/s 5000 fpm

2,MATERIAL:
              STATIONARY RING: CAR/ SIC/ TC
                       ROTARY RING: CAR/ SIC/ TC
                SECONDARY SEAL:  GRAQHITE
SPRING AND METAL PARTS: SS/ H-C
                                    BELLOW: AM350

3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

4,SIZE:  FROM18MM TO 100 MM

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 10 DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:5 SET PER ITEM

WELCOME TO INQUIRE US FOR THE DETAILED INOFRMATION OF THE TYPE SEAL
