Elastomer bellow seal

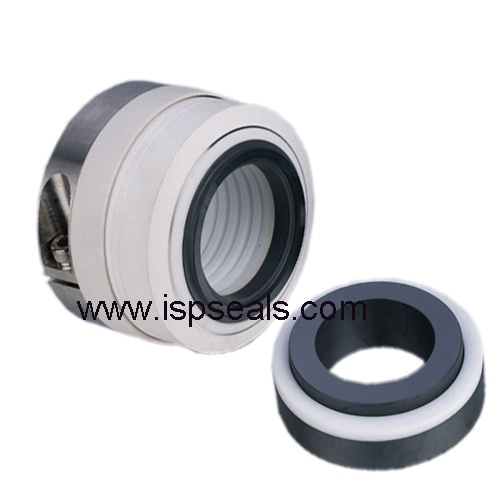

Teflon Bellow Mechanical Seals

These are external mounted Mechanical Seals inherently Balanced in nature. It's special design avoids

contact of metal parts from liquid. therefore such Seals are most commonly used in all kind of Acids,

Alkalies,Strong Oxidising & Reducing agents. Such Seals can be designed in Multi Spring as well as

Single Spring configuration.Teflon Bellow Mechanical Seals can be offered in Composite or Replaceable

face design. Usually it is offered in Glass Filled PTFE & Ceramic Faces but Silicon Carbide can be

offered for contaminated liquids.

1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -20 ℃to +120 ℃
       PRESSURE: ≦ O.5MPa
              SPEED: ≦10M/S

2,MATERIAL:
       STATIONARY RING: CAR/ SIC/ TC
           ROTARY RING: CAR/ SIC/ TC
        SECONDARY SEAL: TEFLON
SPRING AND METAL PARTS: SS/ H-C

3,APPLICATIONS:

      SULFURIC ACID, HYDROCARBON ACID, PHOSPHORIC ACID,ACETIC ACID, AND NOTRIC ACID WITH VARIOUS

DEGREES, ETC.

4,SIZE: THE SAME AS AES ORIGINAL ITEM. FROM 1 INCH TO 2 INCH.

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 20DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:10 SET PER ITEM

WELCOME TO CONTACT US TO GET THE DETAILED INFORMATION OF THIS ITEE.
