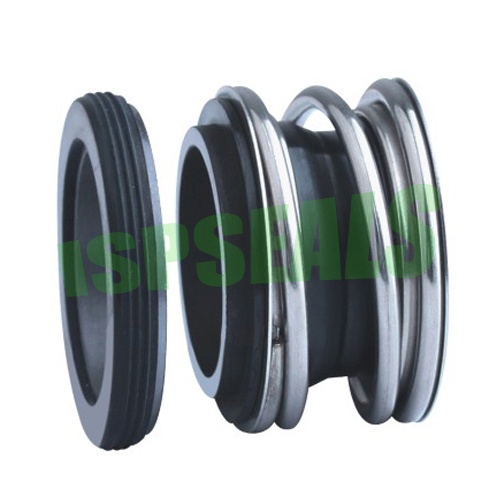

Elastomer bellow seal

Elastomer bellow seal
Product name : Elastomer bellow seal
Item : ISP MG1/MG12/MG13/MG1S20
Details :

ISP MG1/MG12/MG13/MG1S20 SERIES SEALS ARE THE SAME AS ORIGINAL BURGMANN MG SERIES SEALS.


1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -20 ℃to +120 ℃
       PRESSURE: ≦ 1.2MPa
              SPEED: ≦10M/S

2,MATERIAL:
       STATIONARY RING: CAR/ SIC/ TC
           ROTARY RING: CAR/ SIC/ TC
        SECONDARY SEAL: VITON/ EPDM/ AFLAS/ KALREZ
SPRING AND METAL PARTS: SS/ H-C

3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

4,SIZE: THE SAME AS AES ORIGINAL ITEM. FROM 10MM TO 100MM

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 20DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:10 SET PER ITEM


WELCOME TO CONTACT US TO GET THE DETAILED INFORMATION OF THIS ITEE.
