tungsten carbide part

tungsten carbide part
Product name : tungsten carbide part
Item : tc03
Details :

We supply our clients with many kinds of cemented carbide tips,carbide end mill,drills,tungsten carbide tips,mechanical clamped inserts,cutting saw tips,construction brazed tips,gripped tips,carbide milling inserts,carbide turning inserts,welding inserts,etc.

Application:Carbide Brazed Tips or Inserts, Bandsaw Blade Guides, Tungsten carbide knife, Shaped Tips for Cutter Blocks, Shaped tips for cutter blades, cutters / burs and drills.Finish machining of apparatus instruments, glasses, horologe, engine electron industry and so on.

Carbide saw tips which are keen and used for cutting metal, wood, or other hard materials.Tungsten carbide Saw tips are with a sharp toothed edge,and usually have a thin disk or metal blade.They are often power-driven or hand-operated. Our Saw tips are widely used in surface processing of cast irons, alloys and colored metal, as well as nonmetal materials for precision milling, carbide rough turn, hard metal and rough planning.
Non standard carbide tips or inserts can be produced according to the clients' drawing.

Due to tungsten carbide's special physical properties, it has a very wide application, especially for wear parts. Tungsten productscan sustain with high temperatures, abrasion and corrosion, so it is suited for wear parts and many machine parts and dies that obeys tough working environment. Today as we all known a very high percentage of tungsten total quantity in cemented carbide today is applied in wear parts. The extensive range of products covers from small balls for ball-point pens to big and heavy products, like hot rolls for rolling mills, punches or dies.

 Tungsten boat is a special kind of boat which is widely applied in metallizing, sintering, annealing in reducing atmosphere in electronics and light industries.As a special and effective boat vessel, which are widely used in metal evaporation, electron beam splash, and the heat process with sintering and annealing in vacuum coating industries. It is produced by our special production line and the quality is stable.

 The majority material for cemented carbide wear parts and carbide mining tools are tungsten carbide cobalt(WC-Co) without other carbides. The grain size of tungsten carbide hardmetals specially fine and ultrafine grained is getting more important in the area of wear parts,carbide tools for cutting,tools for cast iron,chipless forming and non ferrous alloys and wood.
 Application: Pilot, valve orifice, pulse module, pressure pulse tool, spacer.

Mechanical seal ring or sleeve is one of biggest important wear parts in tungsten carbide products.
We produce various types of tungsten carbide mechanical seal rings like Plain Ring, T-shape, L-shape, DA type,face seal rings and per clients requests.
We have very rich experience in producing mechanical seal rings and metal parts with tight tolerances. The biggest outer diameter of the ring we can make it into 430mm.
We are an ISO certified carbide supplier,and expert in producing OEM parts with excellent quality according to your specific needs.Tungsten Carbide Seal Rings are used as Seal faces in pump and seal, Compressors and Agitators. It is often applied in Oil Refineries, Fertilizer Plants,Petrochemical plants,Pharmaceutical/Drugs industries.
Tungsten Carbide Rings are usually made with Cobalt (Co) as binder material. Nickel(Ni) Bonded Rings are also supplied.

We provide our clients with high quality Tungsten Carbide roll rings and composite rolls for rolling wire rods and merchant bars.
The superior wear resistance characteristics of TC roll rings provide you the highest pass performance in addition to the very good surface finish.
Tungsten carbide roll rings are the standard application in high speed wire rod finishing block and is getting more popular in some other hot and cold forming applications.

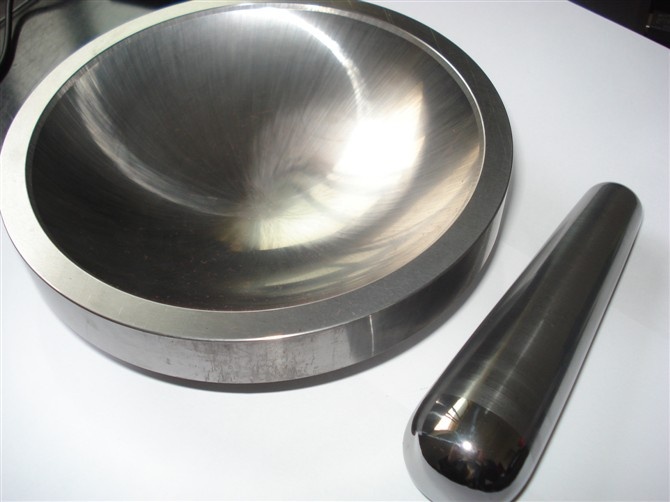

Customized tungsten carbide wear parts for our customers like tungsten carbide bullets,carbide strips,carbide plates,carbide saw blades and with tungsten carbide grinding jars.

Tungsten carbide block is a carbide product with a kind of regular shape like square, rectangular and so on.

Tungsten carbide material has good conductivity, thermal conductivity and corrosion resistance and high density of 16 g/cm3 to 18.5 g/cm3.Cemented carbide also has verty good mechanical strength, small coefficient of thermal conductivity, large expansion coefficient and elastic coefficient.


We receive non-standard customized, special customized. The price changes with different specification,raw materials or numbers of order.If you are interested, please consult.



Descriptions of Products

GRADE DENSITY g/cm3 TYPICAL VALUE APPLICATION SCOPE
HARDNESS BENDING STRENGTH
YG3 15.10~15.30 92.5 1700 Superior wear resistance only less than YG3X, sensitive to impact and vibration, suitable for cast non-ferrous metal and its alloy finish turning, semi-finish turning, thread finish turning and hole expanding.
YG3X 15.10~15.30 93.6 1450 Best wear resistance in Tungeten and Cobalt alooy, but not good in anti-impact proprety, suitable for cast iron, non-ferrous and alloy, quenched steel, alloy steel small cutting section machining at high speed.
YG6X 14.80~15.00 92.4 2000 Belong to small granule Tungsten carbide alloy, wear resistance higher than YG6. Suitable for machining cold and hard alloy cast iron and heat resistance alloy steel, as well as finish machiing for normal cast iron.
YG6 14.80~15.00 91.1 2100 High wear resistance but less than YG3, better anti-impact and anti-vibration than YG3X, Suitable for cast iron, non-ferrous and alloy, non-metal material semi-finish machining and finish machining.
YG6A 14.8~15.00 92.8 1850 Belong to small granule alloy, wear resistance hig, suitable for semi-finish machining of cold and hard cast iron, non-ferrous and alloy, as well as semi-finish machining and finish machining for quenched steel, alloy steel
YG8 14.6~14.80 90.5 2300 High bending strength resistance, better anti-impact and anti-vibration than YG6, suitable for cast iron, non-ferrous and alloy, non-metal material rough machining at low speed.
YG522 14.20~14.40 92.5 2000 High wear resistance, and high strength, special grade for bamboo and wood processing, also suitable for non-ferrous and non-metal material cutting process.
YG546 14.55~14.75 90.5 2700 High flexibility and high strength, withstand high impact load, suitable for stainless steel and cast iron rough processing
YG610 14.60~14.80 93.5 2000 High wear resistance and high hardness, suitable for cast iron, high temperature alloy, quenched material cutting continuous and discontinuously.
YG640 13.10~13.30 91.5 2300 Impact resistance and anti-oxidant, suitable for large cast piece cutting continuous and discontinuously, and anti-heat steel, high strength steel milling and digging.
YG643 13.60~13.80 93.3 1700 High wear resistance, high anti-stick property, suitable for cast iron, high temperature cast iron, high temperature alloy, stainless steel, quenched steel and non-ferrous processing.
YG813 14.30~14.50 92 2200 Good wear resistance, high bending strength resistance and anti-stick property, suitable for processing high temperature alloy, stainless steel and high Manganese steel and other material.

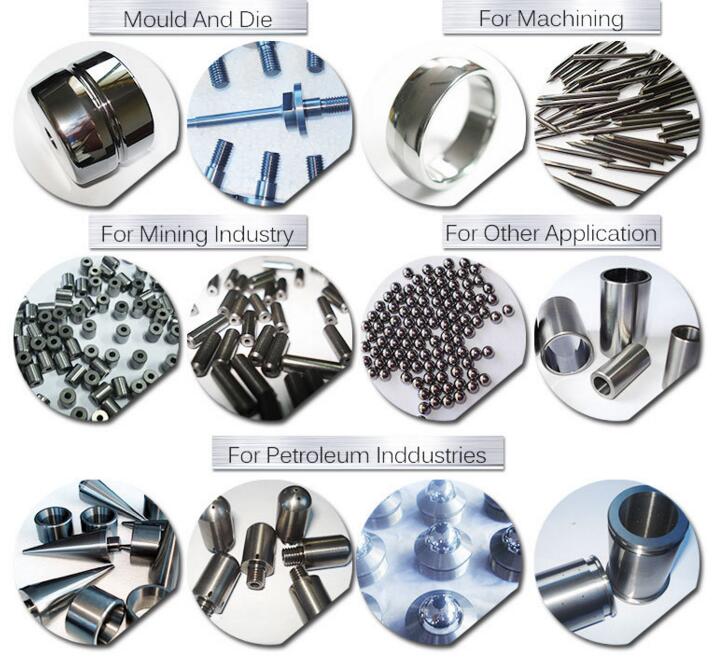

Application of Product

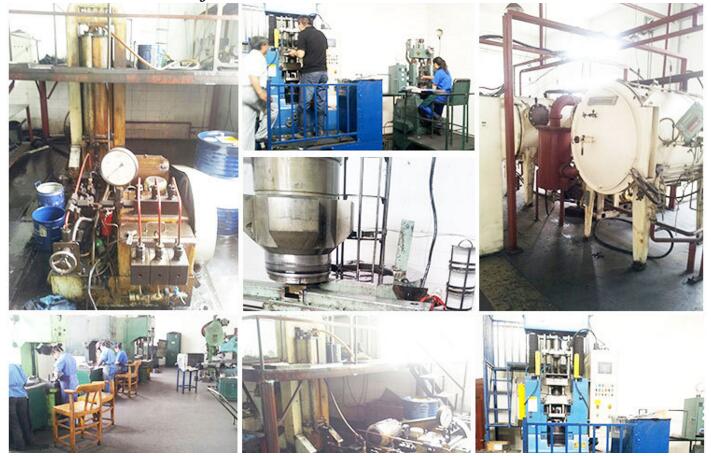

Production Line of Product
