O-Ring mechanical seal

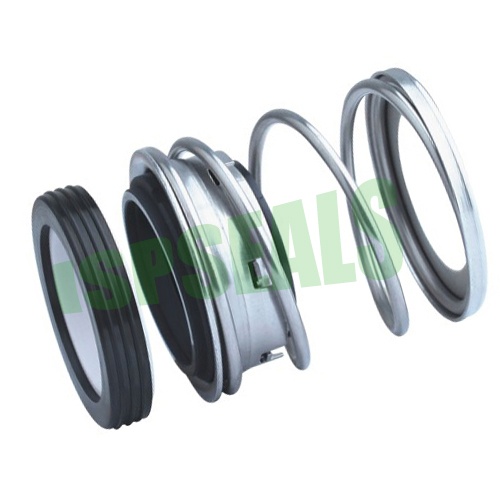

Single Spring Mechanical Seals

These Mechanical Seals are having single spring design to take care contaminated liquids. Due to open

coil spring, it is used for non-clogging and self-cleaning operations.With sturdy and heavy long

spring, it can take care of mis-alignment, vibrations, thermal expansions & axial play of shaft.

These Seals can be offered in Un-balance as well as Balance design to take care variety of

applications. These Mechanical Seals are economical and easy to install and maintain because of

lesser components.Single Spring Mechanical Seals can be made for Uni or Bi-direction motion of shaft.

We have great variety in this design to suit any applications.

1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -20 ℃to +120 ℃
       PRESSURE: ≦ 2.5MPa
              SPEED: ≦15M/S

2,MATERIAL:
       STATIONARY RING: CAR/ SIC/ TC
           ROTARY RING: CAR/ SIC/ TC
        SECONDARY SEAL: VITON/ EPDM/ AFLAS/ KALREZ
SPRING AND METAL PARTS: SS/ H-C

3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

4,SIZE: THE SAME AS AES ORIGINAL ITEM. FROM 1 INCH TO 4 INCH.

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 20DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:10 SET PER ITEM

WELCOME CONTACT US TO GET THE DETAILED INFORMATION OF THIS ITEE.
