JOHN CRANE Type 5610 Single Cartridge O-Ring Seal

JOHN CRANE Type 5610 Single Cartridge O-Ring Seal

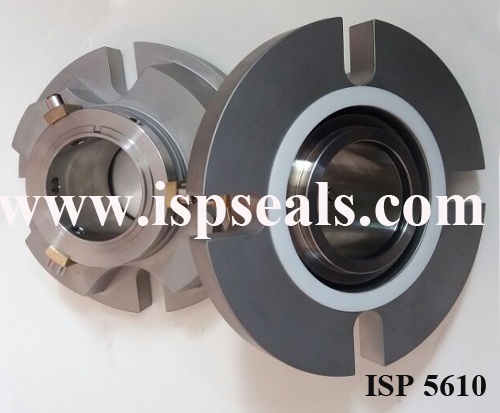

Product name : JOHN CRANE Type 5610 Single Cartridge O-Ring Seal
Item : ISP 5610
Details :
JOHN CRANE Type 5610 Single Cartridge O-Ring Seal

The first truly universal cartridge seal, the Type 5610 will change your approach to sealing. Since the 5600 Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.

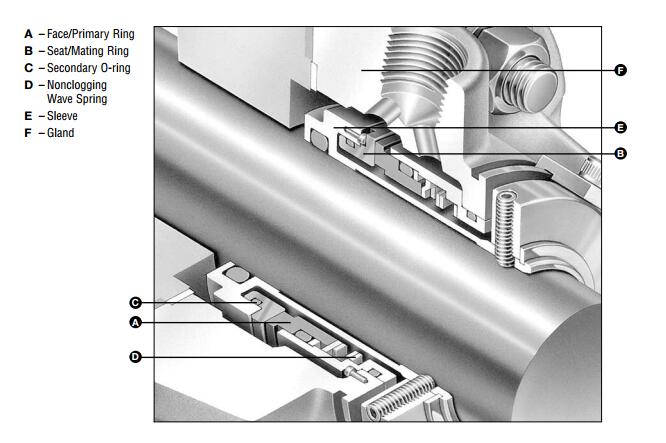

Features

  • Incorporates an elastomer O-ring as the secondary sealing member.
  • A common seal head/mating ring set, utilized throughout all versions, is reversible to allow rotating seat/mating ring or rotating seal head operation, and is interchangeable with metal bellows seal heads.
  • Reversible seal head.
  • Fits ANSI, ISO and DIN seal chambers.
  • Optimized primary ring design for greater reliability.
  • Non-clogging wave spring outside the product.

Parameters

TEMPERATURE LIMITS

400°F/205°C



PRESSURE LIMITS

300 psi(g)/21 bar(g) for sizes up to 3.000"/75mm



200 psi(g)/13 bar(g) for sizes larger than 3.000"/75mm



SPEED LIMITS

5000fpm/25m/s
