CDSA Double cartridge mechanical seal

CDSA Double cartridge mechanical seal

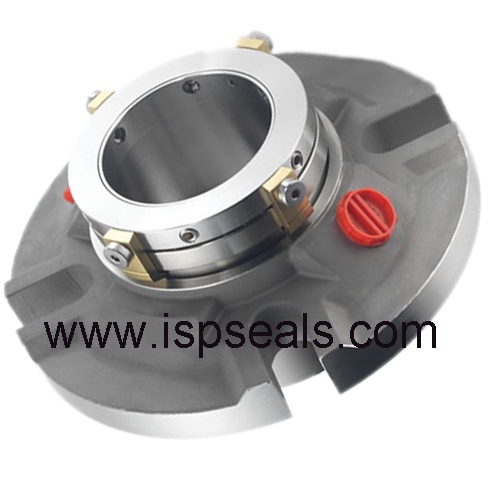

Product name : CDSA Double cartridge mechanical seal
Item : ISP ACDSA
Details :

AES CDSA Double Cartridge mechanical seal

This modular seal is ideal for the containment of hazardous process fluids. It's flexible design allows use as a double seal (high pressure barrier fluid) or tandem seal (low pressure barrier fluid) which reduces the neccessity to inventory two seal designs.


1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -20 ℃to +220 ℃
       PRESSURE: ≦ 2.5MPa
              SPEED: ≦16M/S
2,MATERIAL:
    STATIONARY RING: CAR/ SIC/ TC
           ROTARY RING: CAR/ SIC/ TC
   SECONDARY SEAL: VITON/ EPDM/ AFLAS/ KALREZ
 SPRING AND METAL PARTS: SS/ H-C
3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.
4,SIZE: THE SAME AS AES ORIGINAL ITEM. FROM 1 INCH TO 5 INCH.
5,PACKING: IN CARTON
6,DELIVERY TIME: ABOUT 30DAYS
7,PAYMENT: T/T OR WESTERN UNION

WELCOME TO CONTACT US TO GET THE DETAILED INFORMATION OF THIS ITEM.
