Wave spring mechanical seal

Wave spring mechanical seal
Product name : Wave spring mechanical seal
Item : ISP AW02
Details :

ISP AW02 IS THE SAME AS ORIGINAL AES WO2 TYPE SEAL

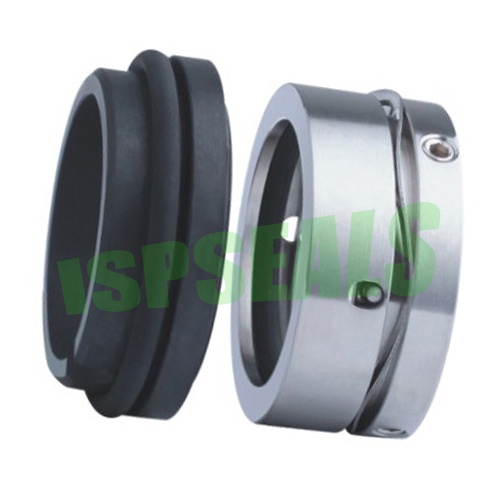

Wave Spring Mechanical Seals

These are Pusher Type Mechanical Seals having special Wave or Disc Spring which works well on contaminated liquids, hence preferred on Multi spring design . Such Seals are compact, robust & bi-directional to Use in clear as well as contaminated liquids. The Wave Spring Mechanical Seals can be offered in several designs in single or double & Un-balanced or Balance Confugiration. Most Common are.UE-M Series Mechanical Seals :it is having loosely fitted face with 'O' Ring, hence easy to assemble . it find great use and very popular in industry.UE-H Series mechanical Seals :it is balanced Seal with lug drive. Wave Spring avoid liquid contact, hence it is very useful in viscous, contaminated liquids on High pressure.

1,OPERATIONAL CONDITIONS:
   TEMPERATURE:  -40 ℃to +200 ℃
       PRESSURE: ≦ 0.8MPa
              SPEED: ≦18M/S

2,MATERIAL:
       STATIONARY RING: CAR/ SIC/ TC
           ROTARY RING: CAR/ SIC/ TC
        SECONDARY SEAL: VITON/ EPDM/ AFLAS/ KALREZ
SPRING AND METAL PARTS: SS/ H-C

3,APPLICATIONS:
     CLEAN WATER, WEWAGE WATER, OIL AND OTHER MODERATELY CORROSIVE FLUID.

4,SIZE: THE SAME AS AES ORIGINAL ITEM. FROM 16MM TO 75MM.

5,PACKING: IN CARTON

6,DELIVERY TIME: ABOUT 20DAYS OR DEPENDS ON THE QUANTITY

7,PAYMENT: T/T OR WESTERN UNION

8,MOQ:10 SET PER ITEM


WELCOME TO CONTACT US TO GET THE DETAILED INFORMATION OF THIS ITEE.
